LITTELFUSE

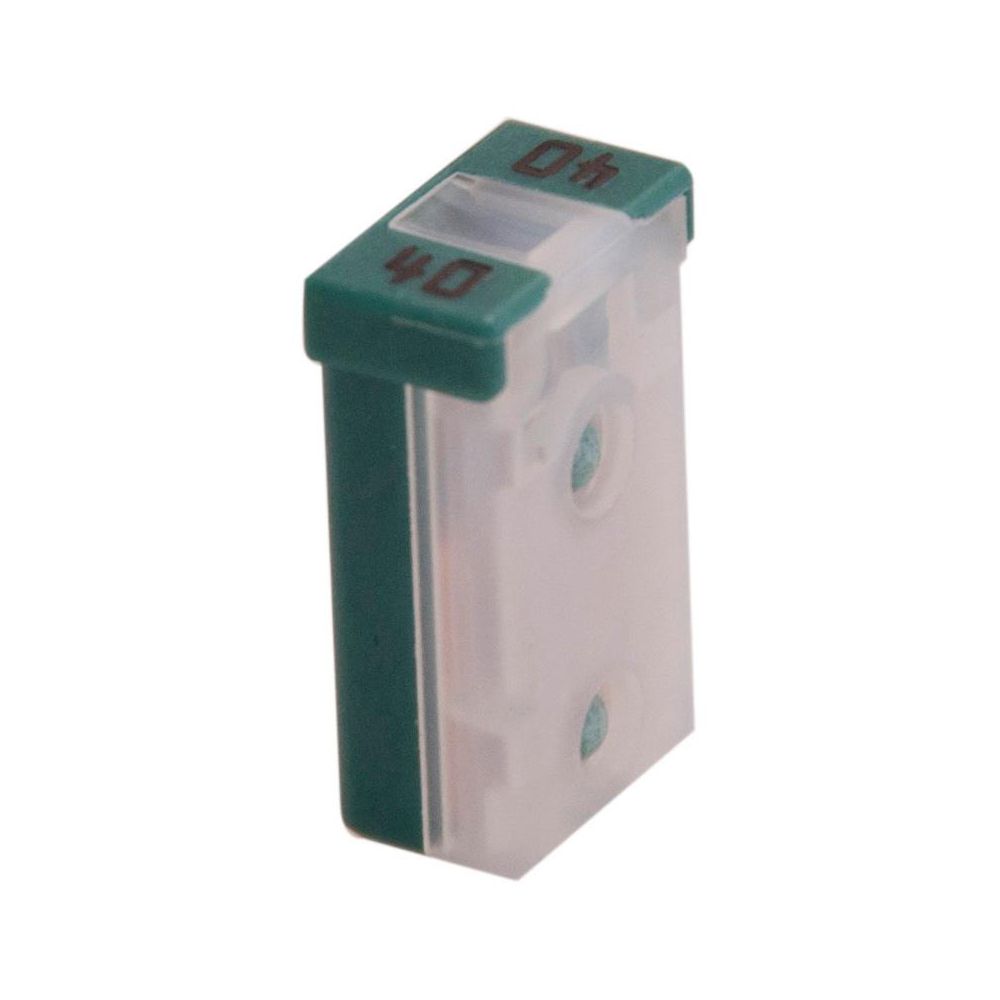

Littelfuse Mcase Automotive Type Cartridge Fuse 40 Amp
Hover over image to magnify
Technical Specifications
Key Specifications
Amperage
40 A
Item
MCASE Fuse
Body Material
PA66
Length
10.7 mm
Brand
LITTELFUSE
Maximum Voltage
32 VDC
Color Code
Green
Mfr. Part Number
0695040.LPXP
Color Family
Green
Package Quantity
10
Depth
17-1/2 mm
Shipping Weight
0.08 lb.
Extraction Force
5-1/2 lb.
Speed
Time Delay
Industry Number
MCAS 40
Temperature Range (Deg. C)
-40 to +125 deg. C
Interrupting Rating
1 kA at 32VDC
Width
6.2 mm
General
Insertion Force
9.9 lb.
Product Description
Mcase Fuse 40 Amp
- Mini Cartridge Style Fuse With Female Terminal Design.
- Color: Green
- Amps: 40
- Provides Increased Time Delay And Low Voltage Drop To Protect High Current Circuits And Handle Inrush Currents.
- For Use With: 2.8mm Male Terminals.
Compliance & Restrictions
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Item Barcode
Mcase Fuse 40A Green
| Name | Item | Description | |
|---|---|---|---|
 | Fuses - by Trade numbers | MCASE 40 | |
 | UNSPSC CODES | 39121607 | JCASE AUTO FUSE 20 AMP |
 | VMRS (ATA) CODES | 034-004-009 | JCASE AUTO FUSE 20 AMP |
