METRI-PACK

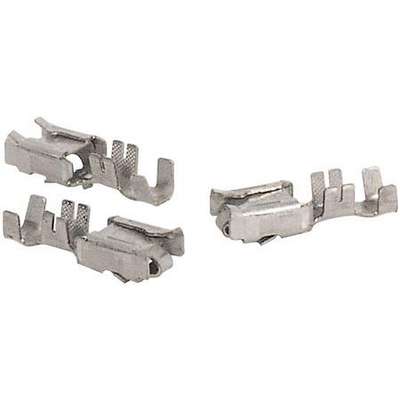

Metri-Pack 630 Female Pull-To- Seat Term 20-18Ga
Hover over image to magnify
Technical Specifications
Brand
METRI-PACK
Shipping Weight
0.25 lb.
Mfr. Part Number
MPF-630P2S-19
Temperature Range (Deg. C)
-40 to +125 deg. C
Pack Quantity
25
Terminal Style
Female Terminal
Series
630
Wire Gauge
20-18 AWG
Product Description
Metri-Pack 630 Series Terminal
- Uses Triple-Rib Peripherial Silicone Rubber Seals, Making Them Ideally Suited For Critical, Low-Energy Electronic Applications That Require Protection From Environental Hazards.
- Low Energy, Low Voltage.
- Excellent Resistance To Temperature, Chemicals, And Abrasion.
- Temperature Range: -40° C. To 125° C.
- 46 Amps Continuous Maximum Current Rating.
- Cross Reference: 12020156
- Female Pull-To-Seat Terminal (20-18 Gauge) Used With Triple Female Housing, Part No. 74040 .
- Use With Blue Cable Seal, Part No. 74039 For 12 Gauge Wire.
- To Disassemble, Use Metri-Pack Release Tool, Part No. 74049 .
Item Barcode
630FEMALE Pull-To-Seat 20-18GA
| Name | Item | Description | |
|---|---|---|---|
 | UNSPSC CODES | 39121700 | 630FEMALE PU LL-TERM20/18 |
 | VMRS (ATA) CODES | 053-007-002 | Electrical Items - Expendable (Wire Misc.) |
