METRI-PACK

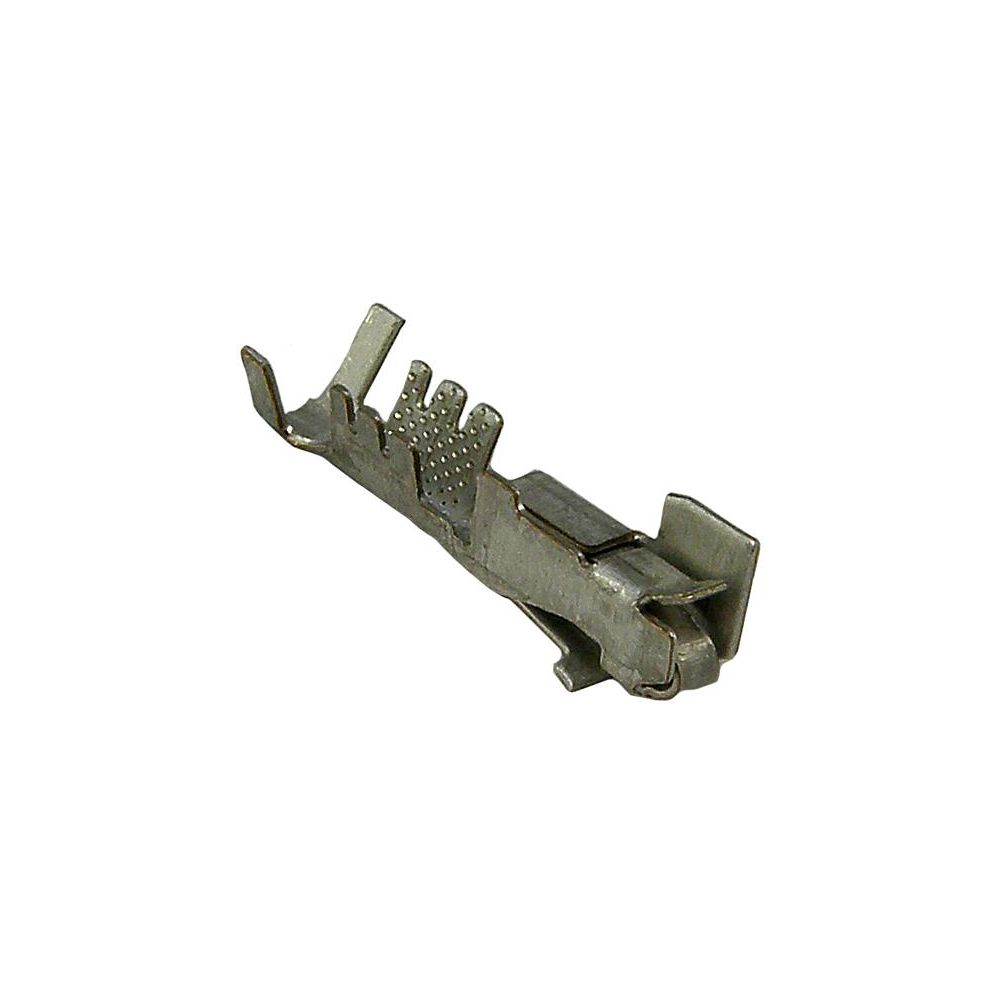

20-18 Gauge Terminal Metri-Pack Terminal 150 Series
Hover over image to magnify
Technical Specifications
Brand
METRI-PACK
Shipping Weight
0.05 lb.
Mfr. Part Number
MPF-150-19
Temperature Range (Deg. C)
-40 to +125 deg. C
Package Quantity
50
Terminal Style
Female Terminal
Series
150
Wire Gauge
20-18 AWG
Product Description
Metri-Pack 150 Series Female Terminal
- These In-Line Delphi Connectors Are Ideal For Space-Limited Applications And Are Used In High Demand Situations Along With Low-Energy Electronic Circuits. As With All Metri-Packs The Terminal Position Assurance (Tpa) Holds The Terminals Firmly In The Connector Bodies And Act As Strain Reliefs. Delphi Connector Position Assurance (Cpa) Secures Mating Halves Together. The Triple-Rib Silicone Coated Packard Cable Seals Ensure A Completely Sealed Configuration. Rated For 16 Volts And 14 Amps.
- Uses Triple-Rib Peripherial Silicone Rubber Seals, Making Them Ideally Suited For Critical, Low-Energy Electronic Applications That Require Protection From Environmental Hazards.
- Low Energy, Low Voltage.
- Excellent Resistance To Temperature, Chemicals, And Abrasion.
- Temperature Range: -40° C. To 125° C.
- 14 Amps Continuous Maximum Current Rating.
- Description: Female Terminal, 20-18 Gauge.
- Cross Reference: 12103881
- To Disassemble, Use Metri-Pack Release Tool, Part No. 74048 .
Item Barcode
20-18 Metri Pack Terminal
| Name | Item | Description | |
|---|---|---|---|
 | UNSPSC CODES | 39121432 | METRI-PACK FEMALE TERM |
 | VMRS (ATA) CODES | 052-007-002 | METRI-PACK FEMALE TERM |
