LITTELFUSE

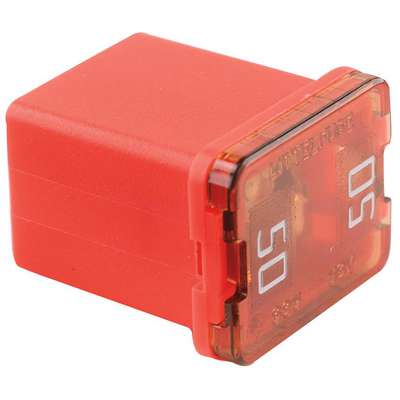

Littelfuse Low Profile JCASE Fuse, 50 A with 58 VDC Voltage Rating, Red
Hover over image to magnify
Technical Specifications
Key Specifications
Amperage
50 A
Head Length
14-1/2 mm
Body Length
12 mm
Head Width
12 mm
Body Material
Plastic
Industry Number
JCAS 50 LP
JCAS 50 LP
Body Width
10 mm
Interrupting Rating
1 kA at 58VDC
Brand
LITTELFUSE
Item
JCASE Fuse
Color Code
Red
Mfr. Part Number
LJCA050.X
Color Family
Red
Package Quantity
10
Depth
16 mm
Shipping Weight
0.15 lb.
Extraction Force
2 lb.
Temperature Range (Deg. C)
-40 to +125 deg. C
Fuse Style
Low Profile
Type
Automotive
Fuse Voltage Rating
58 VDC
General
Insertion Force
12 lb.
Product Description
Low Profile Jcase™ Fuse
- Cartridge Style Fuse With Female Terminal Design.
- Lower Height Than The Standard Jcase Fuse.
- 50 Amp Fuse Is Red.
- Provides Increased Time Delay And Low Voltage Drop To Protect High Current Circuits And Handle Inrush Currents.
Compliance & Restrictions
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Item Barcode
Low Prof Jcase Fuse 50A Red
| Name | Item | Description | |
|---|---|---|---|
 | Fuses - by Trade numbers | LJCA50 | |
 | UNSPSC CODES | 39121607 | LOW PROFILE JCASE AUTO FUSE |
 | VMRS (ATA) CODES | 034-004-009 | LOW PROFILE JCASE AUTO FUSE |
