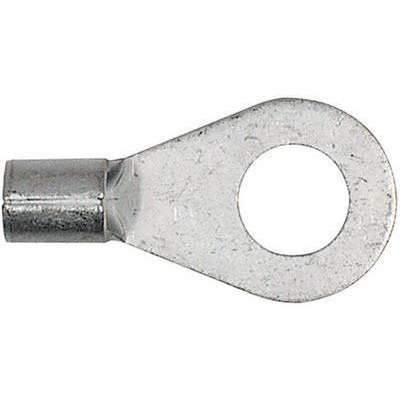

Non-Insulated Ring Terminal, 6 AWG, 7/16" Stud Size
Hover over image to magnify
Technical Specifications
Brand
APPROVED SUPPLIER
Mfr. Part Number
71838
Connection Material
Plated Copper
Non-Insulated Terminal Connector
Ring
Connection Type
Non-Insulated
Package Quantity
20
Continuous Duty Temperature
-40 deg. F to +220 deg. F
Shipping Weight
0.38 lb.
Intermittent Duty Temperature
Up to +300 deg. F
Stud/Tab Size
7/16 in.
Item
Terminal
Wire Gauge
6 AWG
Product Description
Non-Insulated Large Gauge Wire Ring Terminal
- Funnel Barrel Is Molded To The I.D. Of The Terminal Barrel For Positive And Easy Wire Insertion Without Strand Hang-Ups.
- Rigid Sleeve Supports The Wire Insulation.
- Temperature Range: Continuous Duty From -40° F. To 220° F., Intermittent Duty To 300° F.
- Designed To Resist Fractures Under Heavy Vibration.
- .057" Stock.
- Stud Size: 7/16
- Wire Gauge: 6
Compliance & Restrictions
Lot Tracked Item Details
Item Barcode
Non-Ins 6GA 7/16 Ring
| Name | Item | Description | |
|---|---|---|---|
 | UNSPSC CODES | 39121613 | 6 WIRE RING3/8-7/16 |
 | VMRS (ATA) CODES | 053-007-002 | 6 WIRE RING3/8-7/16 |
