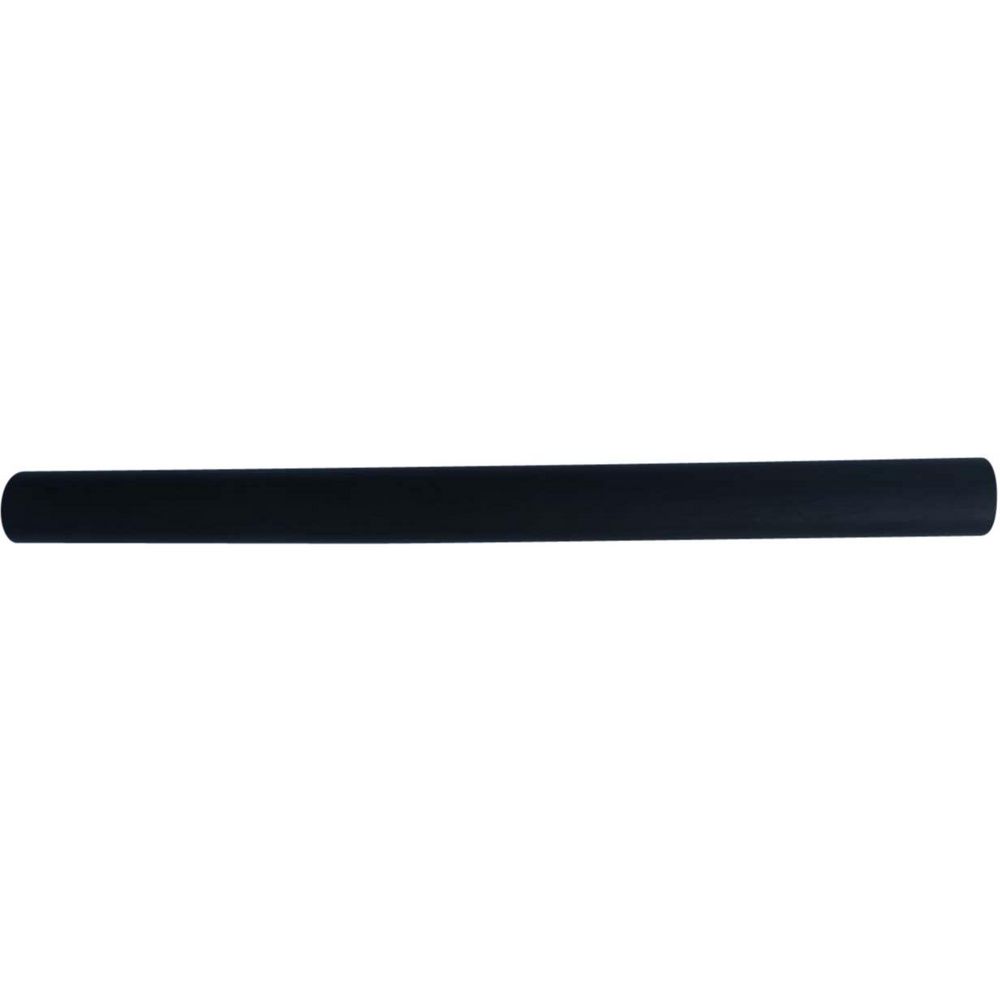

Imperial 14Ga To 10Ga Black Seal-A-Splice Iii 6" Long
Hover over image to magnify
Technical Specifications
Brand
IMPERIAL
Recovered Wall Thickness
0.094 in.
Color Family
Black
Shipping Weight
0.12 lb.
Heat Shrink Tubing Shrink Ratio
2:1 Shrink Ratio
Shrink Tubing Type
Heat Shrink Tubing
Heat Shrink Tubing Style
Heavy Duty HST
Temperature Range
-45 deg. C to 125 deg. C
Inside Diameter Expanded Pre-Shrink
0.4 in.
Trade Name
SEAL-A-SPLICE
Item
Heat Shrink Tubing
Tube Material
Polyolefin
Length
6 in.
Use Shrink Tubing With Wire Size
14 to 10 AWG
Mfr. Part Number
71791-4
Wall Thickness
0.035 in.
Package Quantity
10
Product Description
Seal-A-Splice III® Extra Heavy-Duty
- Offers Greater Protection Under The Most Adverse Environmental Conditions.
- Provides Additional Strain Relief, Abrasion Protection, Optimum Waterproofing, And Environmentalprotection In Submersible, Above Ground, Or Direct Buried Applications.
- Seals Can Be Made Over Lead, Steel, Aluminum, And Copper.
- Eliminates Grease, Tape, And Epoxy Methods.
- Thick Wall Insulation Protects Through 2,000 Volts.
- Rated For Continuous Operating Temperature Up To 90°C.
- Heat Source Of 250° F. To 275° F. Needed To Shrink Tubing.
- Color: Black Measurements:
- Length: 6"
- Approximate Fraction Size: 3/8
- Internal Diameter:
- Mininum Expanded: 0.400"
- Maximum Recovered: 0.150"
- Wall Thickness:
- Expanded: 0.025"
- Recovered: 0.060"
- Recommended Cable Size: 14 Thru 10 Awg
- Note: Ul Approved.
Compliance & Restrictions
Item Barcode
Seal-A-Splice III 3/8x6 Black
| Name | Item | Description | |
|---|---|---|---|
 | UNSPSC CODES | 39121721 | SEAL-A-SPLIC III 14-10GA |
 | VMRS (ATA) CODES | 053-007-002 | SEAL-A-SPLIC III 14-10GA |
