IMPERIAL

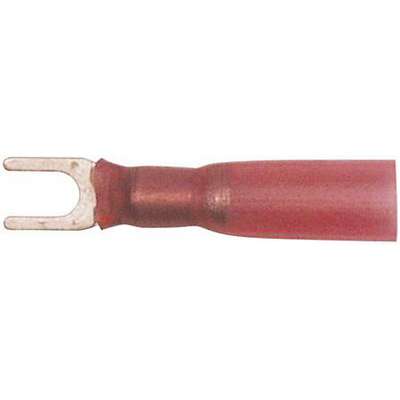

Imperial Seal-A-Crimp Sealed Heat Shrink Spade, Red, 22-18 AWG, #10 Stud Size
Hover over image to magnify
Technical Specifications
Brand
IMPERIAL
Item
Heat Shrink Terminal
Color Family
Red
Mfr. Part Number
71185
Connection Material
Copper
Package Quantity
50
Connection Type
Crimp
Shipping Weight
0.1 lb.
Connector Style
Sealed
Temperature Range (Deg. C)
-55 to +125 deg. C
Heat Shrink Terminal Connector
Spade
Temperature Range (Deg. F)
-67 to +257 deg. F
Heat Shrink Terminal Stud Size
#10
Trade Name
SEAL-A-CRIMP
Insulation Type
Heat Shrink
Wire Gauge Range
22-18 AWG
Product Description
Seal-A-Crimp Spade Terminal
- A Totally Environmental Sealed Terminal Connection.
- Simply Crimp And Heat. A Special Heat Shrink Tubing Is Utilized With An Adhesive Inner Liner That Melts And Adheres As The Tubing Shrinks, Providing A Complete Environmental Seal.
- This Dual-Wall, Heat Seal Terminal Is Specifically Suited For Those Applications Which Require "Environment Proof" Connections.
- The Construction Of This Unique Terminal Begins With A Funnel Entry Terminal Made Of Pure Electrolytic (Ept) Copper And Is Plated To Resist Corrosion.
- Operating Temperature Range: -55 C. To 125 C.
- Stud Size: 10
- Wire Gauge: 22-18
- Color: Red
Compliance & Restrictions
Lot Tracked Item Details
Documents
Item Barcode
Sealed Red #10 Spade
| Name | Item | Description | |
|---|---|---|---|
 | UNSPSC CODES | 39121432 | SEAL-A-CRIMP RED #6 SPADE |
 | VMRS (ATA) CODES | 053-007-002 | SEAL-A-CRIMP RED #6 SPADE |
