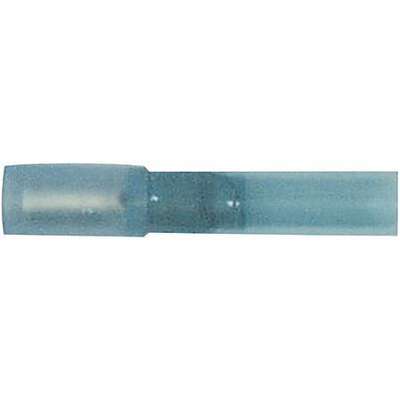

Imperial Seal-A-Crimp NiAc Sealed Heat Shrink Female Snap Plug, Blue, 16-14 AWG
Hover over image to magnify
Technical Specifications
Brand
IMPERIAL
Item
Heat Shrink Terminal
Color Family
Blue
Mfr. Part Number
71181
Connection Material
Tin Plated Brass
Package Quantity
50
Connection Type
Crimp
Shipping Weight
0.5 lb.
Connector Style
Sealed
Temperature Range (Deg. C)
-55 to +125 deg. C
Diameter
0.18 in.
Temperature Range (Deg. F)
-67 to +257 deg. F
Heat Shrink Terminal Connector
Female Snap Plug
Trade Name
SEAL-A-CRIMP
Insulation Material
NiAc
Voltage
600 V
Insulation Type
Heat Shrink
Wire Gauge Range
16-14 AWG
Product Description
Seal-A-Crimp® Insulated Quick Disconnect Terminal
- A Totally Environmental Sealed Terminal Connection.
- Simply Crimp And Heat. A Special Heat Shrink Tubing Is Utilized With An Adhesive Inner Liner That Melts And Adheres As The Tubing Shrinks, Providing A Complete Environmental Seal.
- This Dual-Wall, Heat Seal Terminal Is Specifically Suited For Those Applications Which Require "Environment Proof" Connections.
- The Construction Of This Unique Terminal Begins With A Funnel Entry Terminal Made Of Pure Electrolytic (Ept) Copper And Is Plated To Resist Corrosion.
- Operating Temperature Range: -55° C. To 125° C.
- Style: Female
- Color: Blue
- Wire Range: 16-14
- Diameter: .180
Compliance & Restrictions
Lot Tracked Item Details
Documents
Item Barcode
Sealed Blue Fem Snap Plug .180
| Name | Item | Description | |
|---|---|---|---|
 | Phillips | 1-2267 | SEAL-A-CRIMPBLU FE BULLE |
 | UNSPSC CODES | 39121432 | SEAL-A-CRIMP BLU FE BULLE |
 | VMRS (ATA) CODES | 053-007-002 | Electrical Items - Expendable (Wire Misc.) |
