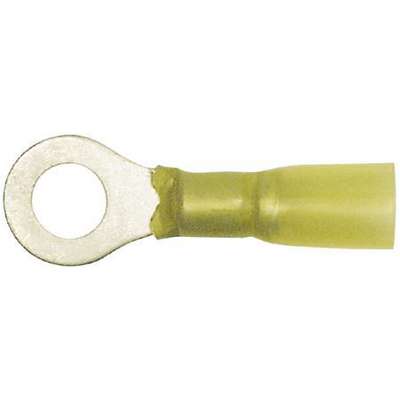

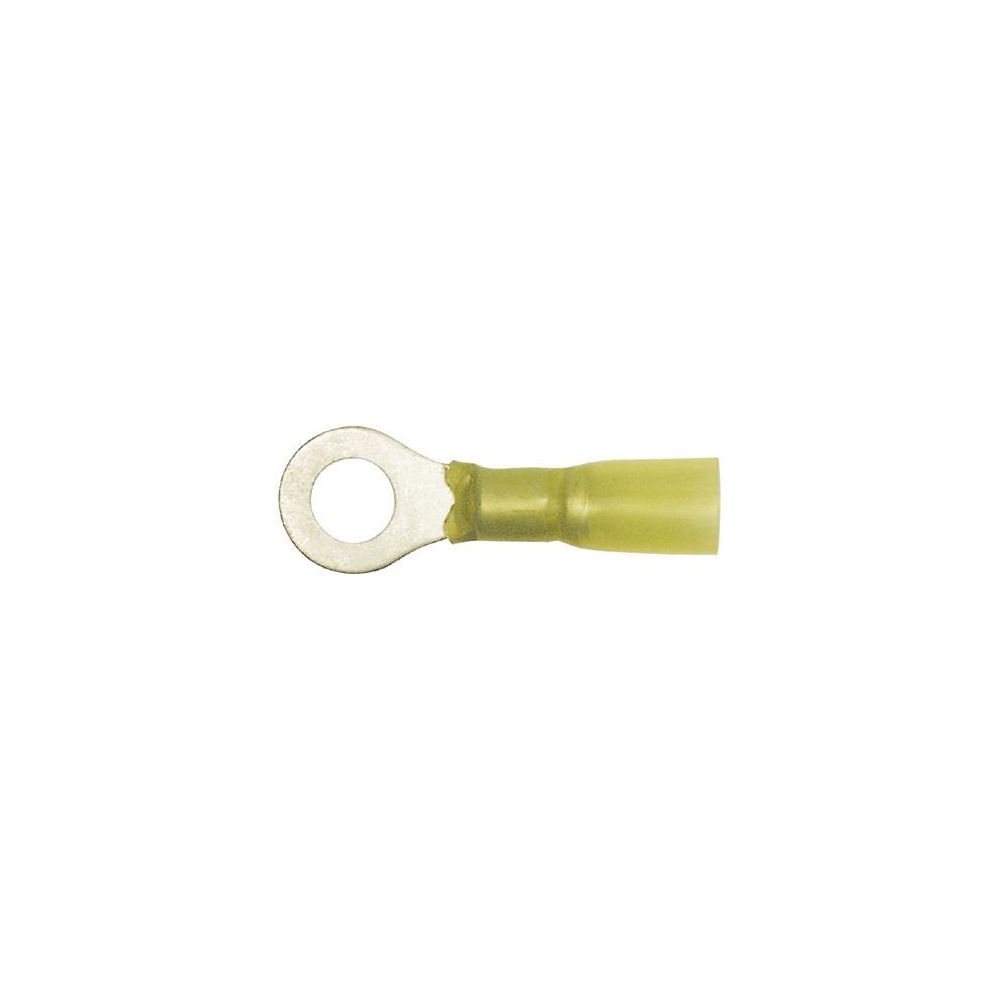

Imperial Seal-A-Crimp Sealed Heat Shrink Ring Terminal, Yellow, 12-10 AWG, Stud Size 1/4-5/16

Hover over image to magnify
Sealed Yellow 1/4-5/16 Ring
Sealed Yellow 1/4-5/16 Ring
Imperial Seal-A-Crimp Sealed Heat Shrink Ring Terminal, Yellow, 12-10 AWG, Stud Size 1/4-5/16 Video

#71160 | Pkg Qty: 50

In Stock

Shipping to 60045
|
Catalog: E2

Technical Specifications

Brand
IMPERIAL
Item
Heat Shrink Terminal
Color Family
Yellow
Mfr. Part Number
71160
Connection Material
Copper
Package Quantity
50
Connection Type
Crimp
Shipping Weight
3 lb.
Connector Style
Sealed
Temperature Range (Deg. C)
-55 to +125 deg. C
Heat Shrink Terminal Connector
Ring Terminal
Temperature Range (Deg. F)
-67 to +257 deg. F
Heat Shrink Terminal Stud Size
1/4-5/16 in.
Trade Name
SEAL-A-CRIMP
Insulation Type
Heat Shrink
Wire Gauge Range
12-10 AWG

Product Description

Seal-A-Crimp® Ring Terminal
  • A Totally Environmental Sealed Terminal Connection.
  • Simply Crimp And Heat. A Special Heat Shrink Tubing Is Utilized With An Adhesive Inner Liner That Melts And Adheres As The Tubing Shrinks, Providing A Complete Environmental Seal.
  • This Dual-Wall, Heat Seal Terminal Is Specifically Suited For Those Applications Which Require "Environment Proof" Connections.
  • The Construction Of This Unique Terminal Begins With A Funnel Entry Terminal Made Of Pure Electrolytic (Ept) Copper And Is Plated To Resist Corrosion.
  • Operating Temperature Range: -55° C. To 125° C.
  • Stud Size: 1/4-5/16
  • Wire Gauge: 12-10
  • Color: Yellow
