IMPERIAL

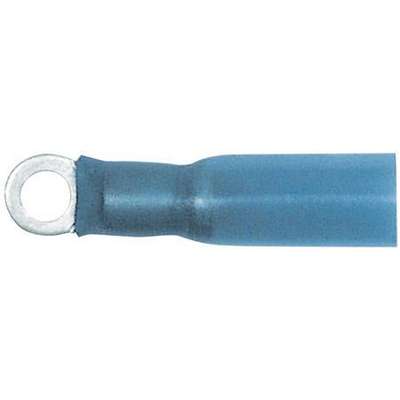

Imperial Seal-A-Crimp Sealed Heat Shrink Ring Terminal, Blue, 16-14 AWG, 4-6 Stud Size

Hover over image to magnify
Sealed Blue 4-6 Ring
Sealed Blue 4-6 Ring
Imperial Seal-A-Crimp Sealed Heat Shrink Ring Terminal, Blue, 16-14 AWG, 4-6 Stud Size Video

#71154 | Pkg Qty: 50

In Stock

Shipping to 60045
|
Catalog: E2

Technical Specifications

Brand
IMPERIAL
Item
Heat Shrink Terminal
Color Family
Blue
Mfr. Part Number
71154
Connection Material
Copper
Package Quantity
50
Connection Type
Crimp
Shipping Weight
0.15 lb.
Connector Style
Sealed
Temperature Range (Deg. C)
-55 to +125 deg. C
Heat Shrink Terminal Connector
Ring Terminal
Temperature Range (Deg. F)
-67 to +257 deg. F
Heat Shrink Terminal Stud Size
#4-6
Trade Name
SEAL-A-CRIMP
Insulation Type
Heat Shrink
Wire Gauge Range
16-14 AWG

Product Description

Seal-A-Crimp® Wire Terminal
  • A Totally Environmental Sealed Terminal Connection.
  • Simply Crimp And Heat. A Special Heat Shrink Tubing Is Utilized With An Adhesive Inner Liner That Melts And Adheres As The Tubing Shrinks, Providing A Complete Environmental Seal.
  • This Dual-Wall, Heat Seal Terminal Is Specifically Suited For Those Applications Which Require "Environment Proof" Connections.
  • The Construction Of This Unique Terminal Begins With A Funnel Entry Terminal Made Of Pure Electrolytic (Ept) Copper And Is Plated To Resist Corrosion.
  • Operating Temperature Range: -55° C. To 125° C.
  • Stud Size: 4-6
  • Wire Gauge: 16-14
  • Color: Blue

Frequently Bought Together

Sealed Blue 4-6 Ring
Assort Seal-A-Crimp Terminals
Currently Viewing
Sealed Blue 4-6 Ring
 | #71154 | Pkg Qty: 50
$261.46 pkg
 | #349-1 | Pkg Qty: 1
Available Assortments View All
Assort Seal-A-Crimp Terminals
$261.46 pkg | $261.46 ea
Item: 349-1
Pkg Qty: 1
Seal-A-Crimp Terminals
$272.01 pkg | $272.01 ea
Item: 350-1
Pkg Qty: 1

Compliance & Restrictions

Lot Tracked Item
Lot Tracked Item Details

Documents

Item Barcode
0711540
Sealed Blue 4-6 Ring
 NameItemDescription
PhillipsPhillips1-1921SEAL-A-CRIMPBLU 4-6 RING
UNSPSC CODESUNSPSC CODES39121432SEAL-A-CRIMP BLU 4-6 RING
VMRS (ATA) CODESVMRS (ATA) CODES053-007-002SEAL-A-CRIMP BLU 4-6 RING
