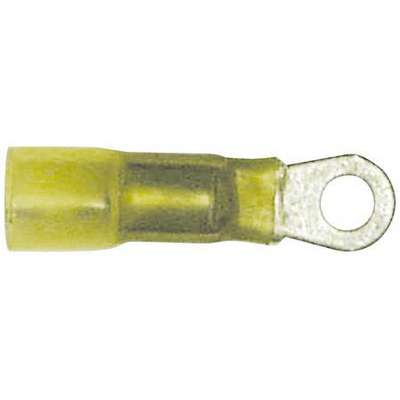

Solder & Seal Ring Terminal, Yellow, 12-10 Awg, #10-#8 Stud Size
Hover over image to magnify
Technical Specifications
Brand
APPROVED SUPPLIER
Package Quantity
50
Color Family
Yellow
Shipping Weight
0.25 lb.
Connection Material
Plated Copper
Solder Seal Connector
Ring
Connection Type
Solder and Seal
Stud/Tab Size
#8-#10
Connector Type
Ring
Temperature Range (Deg. C)
-55 to +110 deg. C
Insulation Material
Polyolefin
Temperature Range (Deg. F)
-67 to +230 deg. F
Item
Terminal
Voltage
600 V
Mfr. Part Number
ELF110-10X
Wire Gauge
12-10 AWG
Product Description
Solder Ring Terminal
- Fluxed Solder Ring Melts And Flows When Heated, Which Strengthens The Connector.
- Complete Waterproof Connection.
- Sleeves Are Color-Coded For Fast Identification.
- No Special Tools Required.
- Temperature Rating Of Installed Splice: -65° F. To 275° F.
- Stud Size: 8-10
- Wire Range: 12-10
- Color: Yellow
Item Barcode
Solder #10 Ring Yel
| Name | Item | Description | |
|---|---|---|---|
 | UNSPSC CODES | 39121432 | SOLDER-SEAL YEL #10 RING |
 | VMRS (ATA) CODES | 053-007-002 | SOLDER-SEAL YEL #10 RING |
