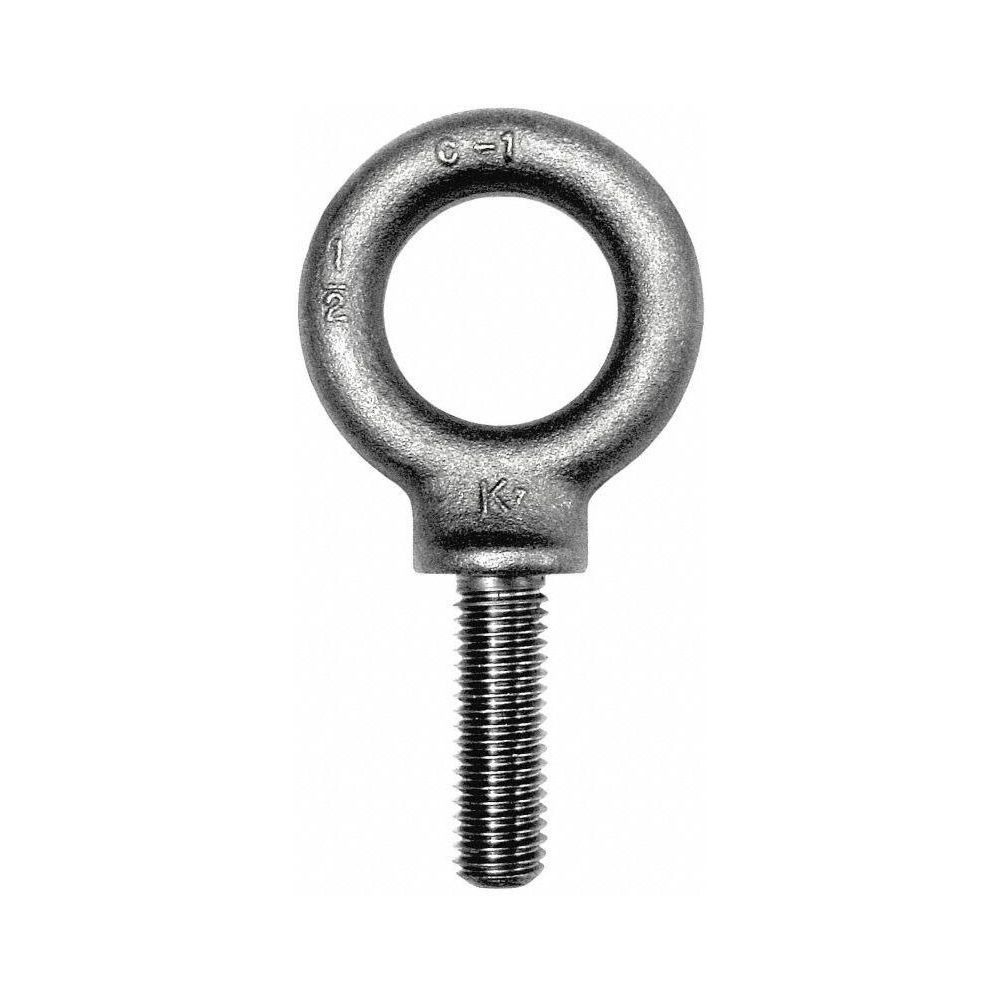

Shoulder Eye Bolt, Carbon Steel, 3/8"-16 x 1", Zinc Plated, 5 PK

Hover over image to magnify
Shldr Eyebolt 3/8X1-1/4
PI_Asset_1110277
Shldr Eyebolt 3/8X1-1/4
PI_Asset_1110277
Double tap image to magnify
Shldr Eyebolt 3/8X1-1/4
0443420_2
Shldr Eyebolt 3/8X1-1/4
0443420_2

#44342Pkg Qty: 5

In Stock

Shipping to 43085
|
Catalog: A32

Shipping Restrictions May Apply

This product cannot be shipped to some parts of the United States and Canada.
<h6 id="shouldereyebolt">Shoulder Eye Bolt</h6> <ul> <li>Drop Forged C1035 Heat Treated Steel. </li> <li>Self Colored. </li> <li>Designed For Lifting. </li> <li>National Coarse Thread. </li> <li>Shanks Fully Threaded To Within 1/8" To 3/8" Of Shoulder Depending On The Diameter. Safe Work Load Is Drastically Lowered When Loading At Any Angle. Avoid Loading At Angles Greater Than 45° From The Center Of The Bolt. </li> <li>Bolt Diameter: 3/8-16 </li> <li>Shank Length: 1-1/4 </li> <li>Inside Diameter Of Eye: 1" </li> <li>Outside Diameter Of Eye: 1-21/32 </li> <li>Safe Work Load Lb On A Straight Pull: 1,300 Lb</li> </ul>
Shoulder Eye Bolt
  • Drop Forged C1035 Heat Treated Steel.
  • Self Colored.
  • Designed For Lifting.
  • National Coarse Thread.
  • Shanks Fully Threaded To Within 1/8" To 3/8" Of Shoulder Depending On The Diameter. Safe Work Load Is Drastically Lowered When Loading At Any Angle. Avoid Loading At Angles Greater Than 45° From The Center Of The Bolt.
  • Bolt Diameter: 3/8-16
  • Shank Length: 1-1/4
  • Inside Diameter Of Eye: 1"
  • Outside Diameter Of Eye: 1-21/32
  • Safe Work Load Lb On A Straight Pull: 1,300 Lb
Pkg Qty 5 | Order Qty 1
Where will this product be shipped?

Technical Specifications

Key Specifications
Basic Material
Steel
Package Quantity
5
Brand
APPROVED SUPPLIER
Shank Length
1-1/4 in.
Eye Bolt Application
For Lifting
Shipping Weight
0.58 lb.
Eye Inside Diameter
1 in.
System of Measurement
Fractional
Eye Outside Diameter
1.6563 in.
Tensile Strength Range
65000 to 85000 psi
Finish
Zinc Plated
Thread Length
1-1/4 in.
Item
Eye Bolt
Thread Size
3/8"-16
Material
Carbon Steel
Thread Type
Coarse
Mfr. Part Number
44342
Working Load Limit
1300 lb.
General
Eye Bolt Style
Shoulder

Product Description

Shoulder Eye Bolt
  • Drop Forged C1035 Heat Treated Steel.
  • Self Colored.
  • Designed For Lifting.
  • National Coarse Thread.
  • Shanks Fully Threaded To Within 1/8" To 3/8" Of Shoulder Depending On The Diameter. Safe Work Load Is Drastically Lowered When Loading At Any Angle. Avoid Loading At Angles Greater Than 45° From The Center Of The Bolt.
  • Bolt Diameter: 3/8-16
  • Shank Length: 1-1/4
  • Inside Diameter Of Eye: 1"
  • Outside Diameter Of Eye: 1-21/32
  • Safe Work Load Lb On A Straight Pull: 1,300 Lb

Item Barcode

0443420
Shldr Eyebolt 3/8X1-1/4
