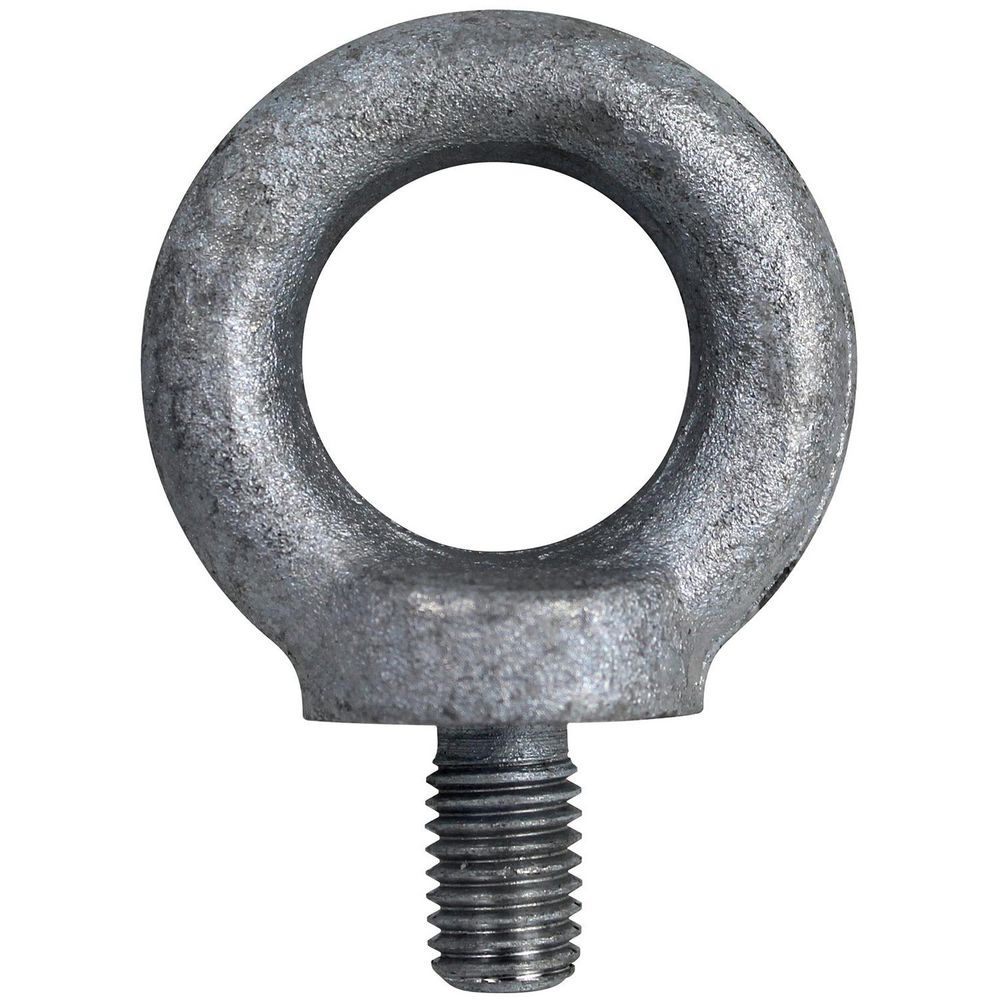

Shoulder Eye Bolt, Carbon Steel, 1/4"-20 x 3/4", Zinc Plated, 5 PK
Hover over image to magnify
Technical Specifications
Basic Material
Steel
Overall Length
2.31 in.
Brand
APPROVED SUPPLIER
Package Quantity
5
Eye Bolt Application
For Lifting
Shank Length
1 in.
Eye Bolt Style
Shoulder
Shipping Weight
0.29 lb.
Eye Inside Diameter
3/4 in.
System of Measurement
Fractional
Eye Outside Diameter
1-3/16 in.
Tensile Strength Range
65000 to 85000 psi
Finish
Zinc Plated
Thread Length
1-1/4 in.
Item
Eye Bolt
Thread Size
1/4"-20
Material
Carbon Steel
Thread Type
Coarse
Mfr. Part Number
44340
Working Load Limit
500 lb.
Nut Included
No
Product Description
Shoulder Eye Bolt
- Drop Forged C1035 Heat Treated Steel.
- Self Colored.
- Designed For Lifting.
- National Coarse Thread.
- Shanks Fully Threaded To Within 1/8" To 3/8" Of Shoulder Depending On The Diameter. Safe Work Load Is Drastically Lowered When Loading At Any Angle. Avoid Loading At Angles Greater Than 45° From The Center Of The Bolt.
- Bolt Diameter: 1/4-20
- Shank Length: 1"
- Inside Diameter Of Eye: 3/4
- Outside Diameter Of Eye: 1-3/16
- Safe Work Load Lb On A Straight Pull: 500 Lb
Item Barcode
Shldr Eyebolt 1/4X1
| Name | Item | Description | |
|---|---|---|---|
 | UNSPSC CODES | 31161610 | SHLDR.EYEBLT 1/4-20X1 |
 | VMRS (ATA) CODES | 053-007-005 | SHLDR.EYEBLT 1/4-20X1 |
