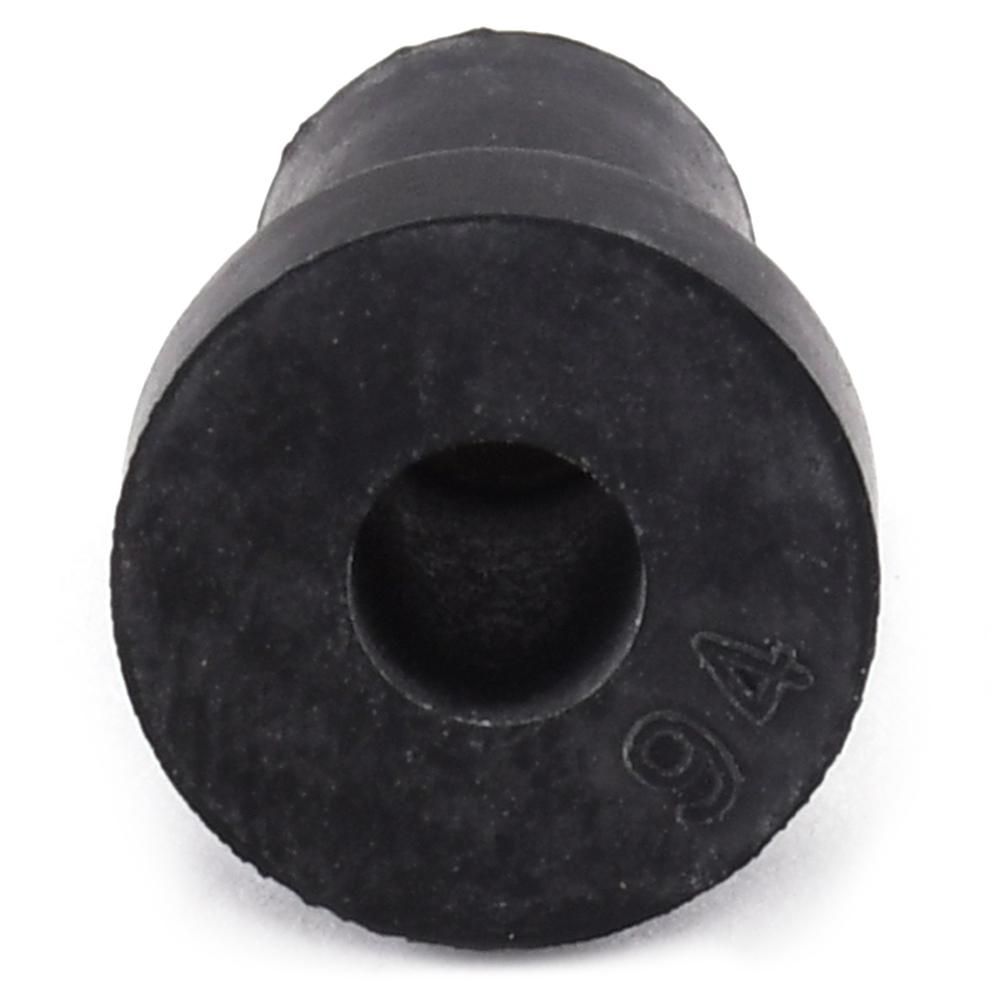

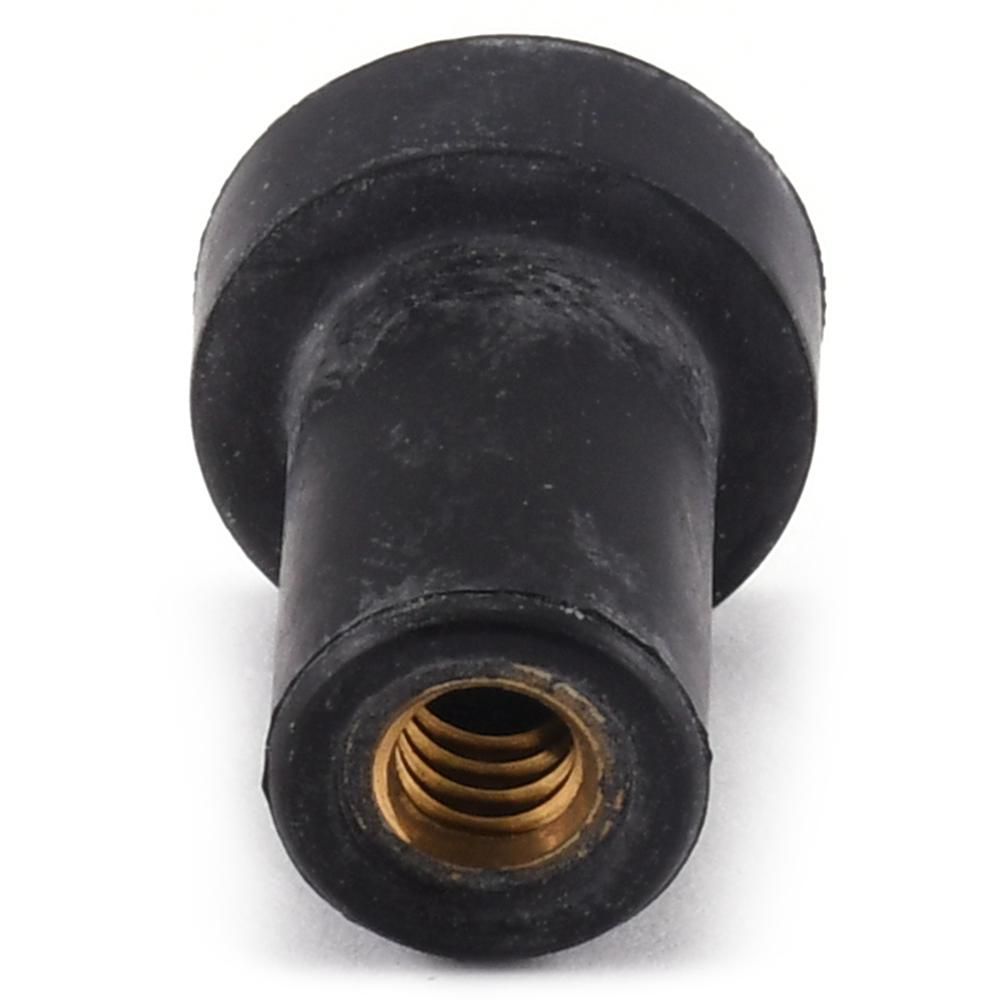

Rubber Expandable Nut, 10"-24, Neoprene with Captive Brass Nut, 25 PK
Hover over image to magnify
Technical Specifications
Body Diameter
0.375 in.
Overall Length
0.767 in.
Brand
APPROVED SUPPLIER
Package Quantity
25
Grip Range
0.03 in. to 0.227 in.
Shipping Weight
0.15 lb.
Head Diameter
0.562 in.
System of Measurement
Fractional
Head Thickness
0.187 in.
Thread Direction
Right
Item
Rubber Expandable Nut
Thread Size
#10-24
Material
Neoprene with Captive Brass Nut
Thread Type
Coarse
Mfr. Part Number
38013
Product Description
Rubber Expandable Nuts
- Neoprene With Captive Brass Nut.
- To Install: Place Insert All The Way Into Pre-Drilled Hole Until Flange Is Firmly Against Mounting Surface. Pass Machine Screw Through Part To Be Fastened And Tighten Until Snug.
- Thread Size: #10-24
- Grip Range: Mininum .030, Maximum .227.
- Head Diameter: .562
- Head Thickness: .187
- Overall Length: .767
- External Body Diameter: .375
- Oe# Gm 3876130
Compliance & Restrictions
WARNING: This product can expose you to chemicals including Chloroprene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
Lot Tracked Item Details
Item Barcode
Rubber Exp Nut #10-24
| Name | Item | Description | |
|---|---|---|---|
 | GM OEM | 3876130 | WELL-NUT #10-24 |
| AUVECO | 16240 | WELL-NUT #10-24 |
| Disco | 15953PK | WELL-NUT #10-24 |
| OEM Body Clips | 3876130 | WELL-NUT #10-24 |
 | UNSPSC CODES | 31161703 | WELL-NUT 1#10-24 |
 | VMRS (ATA) CODES | 053-007-004 | WELL-NUT #10-24 |
