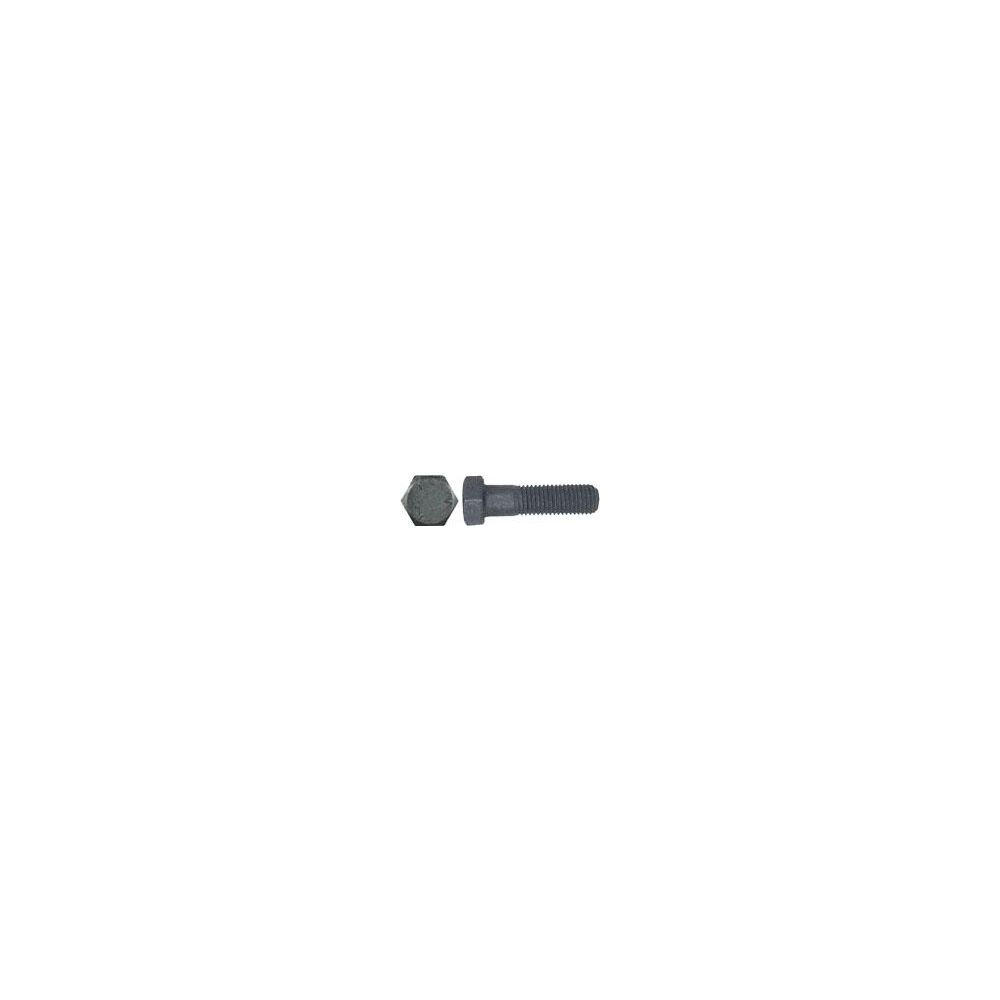

Grade 5 USS Hex Head Cap Screw, 3/4"-10 x 7", Plain, Steel, 10 PK
Hover over image to magnify
Double tap image to magnify
#20677Pkg Qty: 10
In Stock
Shipping to 43085
Catalog: A10
Shipping Restrictions May Apply
This product cannot be shipped to some parts of the United States and Canada.
Thread Pitch: 3/4-10 UNC
- Grade 5 USS Hex Head Cap Screw.
- Conforms To SAE Grade 5 Physical And Mechanical Specifications. Technical Data Material And Mechanical Properties Of SAE J429 Dimensions: Ansi/Asme B18.2.1 Hex Head Cap Screws Tensile: 1/4" - 1" Nominal Diameter 120,000 PSI (Minimum) Over 1" Nominal Diameter 105,000 PSI (Minimum) Proof Load: 1/4" - 1" Nominal Diameter 85,000 Psi; Over 1" Nominal Diameter 74,000 PSI Threads: Radius Root Class 2A To Ansi/Asme B1.1 Hardness: 1/4" - 1" Nominal Diameter Rockwell C25-C34; Over 1" Nominal Diameter C19-C30 Decarburation: SAE J121 Discontinuities: SAE J1061 Finish: Unplated Guide For Thread Length On Partially Threaded Bolts. For Bolts Under 6": Twice The Bolt Diameter Plus A 1/4". For Bolts Over 6": Twice The Bolt Diameter Plus A 1/2". This Gives You The Approximate Bolt Thread Length Available.
Pkg Qty 10 | Order Qty 1
Technical Specifications
Key Specifications
Basic Material
Steel
Item
Cap Screw
Brand
APPROVED SUPPLIER
Length Under Head
7 in.
Country of Origin
Varies (subject to change)
Mfr. Part Number
20677
Diameter/Thread Size
3/4"-10
Package Quantity
10
Fastener Diameter
3/4 in.
Rockwell Hardness
C25-C34
Fastener Material Grade/Class
Grade 5
Shipping Weight
9.7 lb.
Fastener Tensile Strength
120000 psi
System of Measurement
Fractional
Fastener Thread Style
Partially Threaded
Thread Direction
Right Hand
Finish
Plain
Thread Length
2 in.
Head Type
Hex Head
Thread Type
Coarse/ USS/ UNC
Head Width
1-1/8 in.
General
Meets Standards
SAE Grade 5 physical and mechanical specifications, USS
Product Description
Thread Pitch: 3/4-10 UNC
- Grade 5 USS Hex Head Cap Screw.
- Conforms To SAE Grade 5 Physical And Mechanical Specifications. Technical Data Material And Mechanical Properties Of SAE J429 Dimensions: Ansi/Asme B18.2.1 Hex Head Cap Screws Tensile: 1/4" - 1" Nominal Diameter 120,000 PSI (Minimum) Over 1" Nominal Diameter 105,000 PSI (Minimum) Proof Load: 1/4" - 1" Nominal Diameter 85,000 Psi; Over 1" Nominal Diameter 74,000 PSI Threads: Radius Root Class 2A To Ansi/Asme B1.1 Hardness: 1/4" - 1" Nominal Diameter Rockwell C25-C34; Over 1" Nominal Diameter C19-C30 Decarburation: SAE J121 Discontinuities: SAE J1061 Finish: Unplated Guide For Thread Length On Partially Threaded Bolts. For Bolts Under 6": Twice The Bolt Diameter Plus A 1/4". For Bolts Over 6": Twice The Bolt Diameter Plus A 1/2". This Gives You The Approximate Bolt Thread Length Available.
