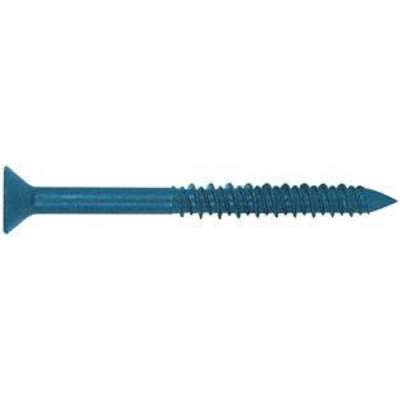

Tapcon Flat Phillips Head Anchor 1/4 X 2-1/4"

Tapcon® Phillips Flat Head Masonry Anchor

• The Original Blue Masonry Anchor That Cuts Threads Into Concrete, Brick, Or Hollow Block.
• Fast Installation; Drill A Hole, Drive An Anchor.
• Available In 3/16 And 1/4 Diameters And In Lengths 1-1/4 To 4".
• Replaces Small Diameter Expansion Anchors, Plugs, And Screws In Light To Medium Duty Applications.
• No Need To Pre-Spot Holes, And No Inserts Are Required.
• Reversible And Removable. Can Be Installed Close To An Edge.
• One Drill Bit Included With Each Box Of 100.
• Style: Original Notched Hi-Lo Thread, Nail Point Type, Blue Climaseal Finish.
• Size: 1/4 X 2-1/4, #3 Phillips Flat Head
• Fixture Thickness: 3/4-1-1/4
• Applications:
• Electrical Junction Boxes And Conduit Clips To Masonry.
• Wood Headers And Furring Strips To Masonry.
• Hvac Strapping To Masonry.
• Plywood Backer Boards To Masonry.
• Exterior Insulation Systems To Masonry.
• Corrosion Specifications:
• Kesternich Results (Din 50018, 2.0L), 30 Cycles - 10% Or Less Red Rust
• Salt Spray Results (Astm B117), 720 Hours - 10% Or Less Red Rust
• For Ease Of Installation, Use The Tapcon® Tool Kit, Part No. 11265 . Performance Data Pullout In Concrete (3,145 Psi, Cured 40 Days) (Lb) Anchor Dia. Depth Of Embedment In Solid Material 1" 1-1/4" 1-1/2" 1-3/4" 1/4 718 Lb 1,138 Lb 1,537 Lb 1,860 Lb Test Number Ch3932/Pittsburgh Testing Laboratories Pullout In Hollow Block Anchor Dia. Depth Of Embedment In Solid Material 1" 1-1/4" 1-1/2" 1-3/4" 1/4 406 Lb 615 Lb 851 Lb 984 Lb Test Number Ch3748/Pittsburgh Testing Laboratories Shear Strength Anchor Dia. Anchor Embedment Shear Strength 3145 Psi Hard Rock Concrete Shear Strength Lightweight Hollow Block 1/4 1-1/4" 1,604 Lb 1,058 Lb Test Number Ch3932/Pittsburgh Testing Laboratories
