POWER-STUD

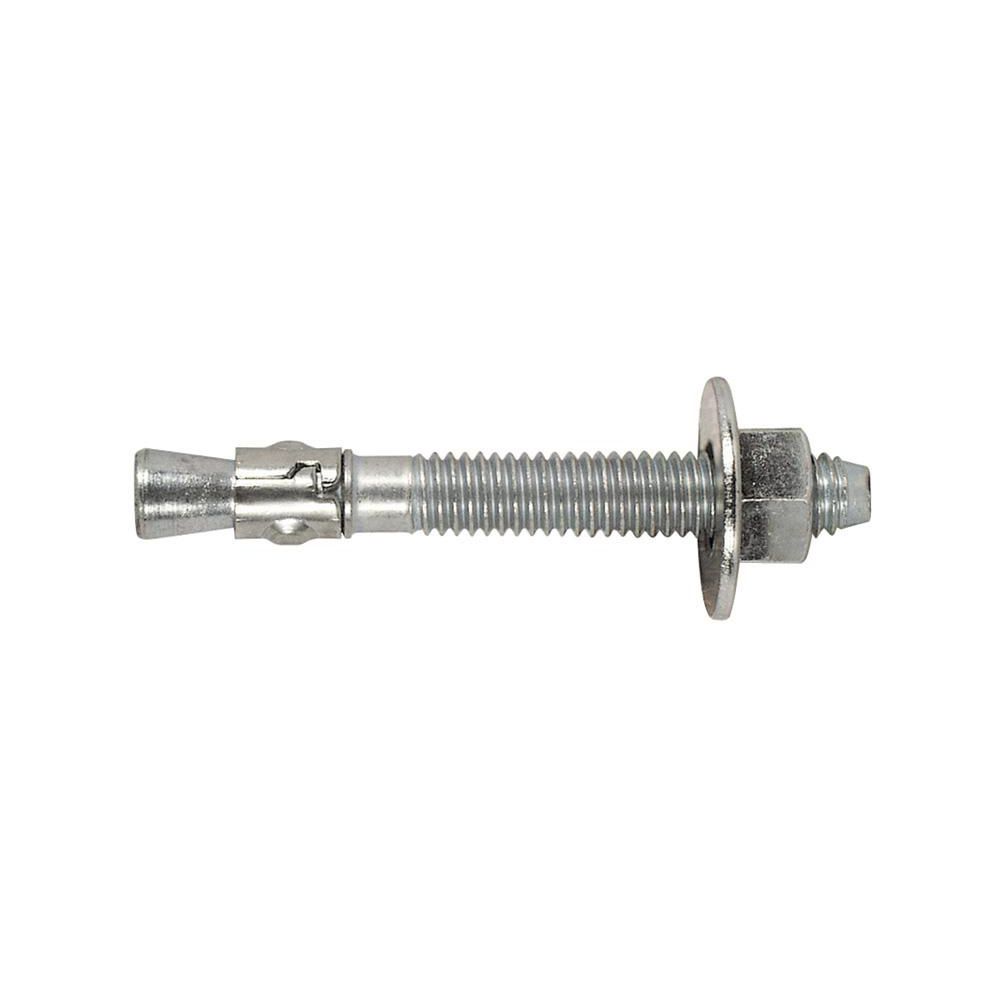

Power Stud 3/4 X 7

Hover over image to magnify
Power Stud 3/4 X 7
Power Stud 3/4 X 7
Double tap image to magnify
Power Stud 3/4 X 7
Power Stud 3/4 X 7

#10549Pkg Qty: 5

In Stock

Shipping to 43085
|
Catalog: B36

Shipping Restrictions May Apply

This product cannot be shipped to some parts of the United States and Canada.
<h6 id="powerstudwedgeanchor">Power-Stud® Wedge Anchor</h6> <ul> <li>A One-Piece, Wedge Style Anchor Designed For Use In Concrete. </li> <li>The Anchor Diameter Is The Same As The Diameter Of The Hole For Faster Installation. </li> <li>Chamfered Threaded End Prevents Damage To The Threads During Installation. </li> <li>Carbon Steel Power Stud Anchors Are Bright Zinc Plated. </li> <li>Size: 3/4 X 7" </li> <li>Minimum Embedment: 3-3/8" </li> <li>Thread Length: 5" </li> <li>Note: The Length Shown Is The Overall Length Of The Anchor. Allow One Anchor Diameter For The Nut And Washer Thickness When Selecting A Length. Installation Procedures Using The Proper Diameter Bit, Drill A Hole Into The Base Material To A Depth Of At Least 1/2" Or One Anchor Diameter Deeper Than The Embedment Required. The Tolerances Of The Drill Bit Used Should Meet The Requirements Of Ansi Standard B212.15. Blow The Hole Clean Of Dust And Position The Power Stud. Drive The Anchor Through The Fixture Into The Anchor Hole Until The Nut And Washer Are Firmly Seated Against The Fixture. Be Sure The Anchor Is Driven To The Required Embedment Depth. Tighten The Anchor By Turning The Nut 3 To 4 Turns Or By Applying The Guide Installation Torque From The Finger Tight Position.</li> </ul>
Power-Stud® Wedge Anchor
  • A One-Piece, Wedge Style Anchor Designed For Use In Concrete.
  • The Anchor Diameter Is The Same As The Diameter Of The Hole For Faster Installation.
  • Chamfered Threaded End Prevents Damage To The Threads During Installation.
  • Carbon Steel Power Stud Anchors Are Bright Zinc Plated.
  • Size: 3/4 X 7"
  • Minimum Embedment: 3-3/8"
  • Thread Length: 5"
  • Note: The Length Shown Is The Overall Length Of The Anchor. Allow One Anchor Diameter For The Nut And Washer Thickness When Selecting A Length. Installation Procedures Using The Proper Diameter Bit, Drill A Hole Into The Base Material To A Depth Of At Least 1/2" Or One Anchor Diameter Deeper Than The Embedment Required. The Tolerances Of The Drill Bit Used Should Meet The Requirements Of Ansi Standard B212.15. Blow The Hole Clean Of Dust And Position The Power Stud. Drive The Anchor Through The Fixture Into The Anchor Hole Until The Nut And Washer Are Firmly Seated Against The Fixture. Be Sure The Anchor Is Driven To The Required Embedment Depth. Tighten The Anchor By Turning The Nut 3 To 4 Turns Or By Applying The Guide Installation Torque From The Finger Tight Position.
Pkg Qty 5 | Order Qty 1
Where will this product be shipped?

Technical Specifications

Anchor Diameter
3/4 in.
Minimum Embedment
3-3/8 in.
Anchor Length
7 in.
Pack Quantity
5
Brand
POWER-STUD
Shipping Weight
4.89 lb.
Item
Wedge Anchor
Thread Length
5 in.
Material
Carbon Steel
Thread Size
3/4"-10
Mfr. Part Number
7446SD1

Product Description

Power-Stud® Wedge Anchor
  • A One-Piece, Wedge Style Anchor Designed For Use In Concrete.
  • The Anchor Diameter Is The Same As The Diameter Of The Hole For Faster Installation.
  • Chamfered Threaded End Prevents Damage To The Threads During Installation.
  • Carbon Steel Power Stud Anchors Are Bright Zinc Plated.
  • Size: 3/4 X 7"
  • Minimum Embedment: 3-3/8"
  • Thread Length: 5"
  • Note: The Length Shown Is The Overall Length Of The Anchor. Allow One Anchor Diameter For The Nut And Washer Thickness When Selecting A Length. Installation Procedures Using The Proper Diameter Bit, Drill A Hole Into The Base Material To A Depth Of At Least 1/2" Or One Anchor Diameter Deeper Than The Embedment Required. The Tolerances Of The Drill Bit Used Should Meet The Requirements Of Ansi Standard B212.15. Blow The Hole Clean Of Dust And Position The Power Stud. Drive The Anchor Through The Fixture Into The Anchor Hole Until The Nut And Washer Are Firmly Seated Against The Fixture. Be Sure The Anchor Is Driven To The Required Embedment Depth. Tighten The Anchor By Turning The Nut 3 To 4 Turns Or By Applying The Guide Installation Torque From The Finger Tight Position.

Item Barcode

0105490
Power Stud 3/4 X 7
