BRYANT

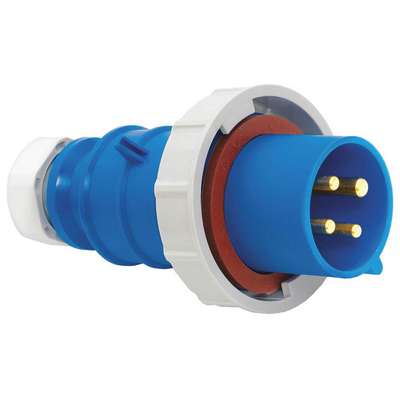

Bryant 30 Amp, 3-Phase Nylon Watertight Pin and Sleeve Plug, Blue
Hover over image to magnify
#936310-5 | Pkg Qty: 1
$233.01 pkg | $233.01 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
30 A
Mfr. Part Number
BRY430P9W
Amps
30 A
Minimum Wire Size
12 AWG
Body Material
Zytel 801 Nylon
NEMA Enclosure Rating
Not Rated
Brand
BRYANT
Number of Poles
3
Cap Type
No Cap or Cover
Number of Wires
4
Color Family
Blue
Outside Diameter
3.74 in.
Connection Orientation
Straight
Package Quantity
1
Current Rating
30 A
Phase
Three
Features
Watertight
Pin & Sleeve Standards
IEC 309, UL Listed
For Maximum Cable Diameter
1.26 in.
Power Indicating Light
No
For Minimum Cable Diameter
0.5 in.
Reverse Service
No
Grounding
Grounded
Shipping Weight
.9 lb.
Grounding Style
IEC
Shrouded
Yes
Horsepower
7 1/2 hp
Standards
IEC 309-1, IEC 309-2, UL 498
Housing Color
Orange
Switch Rated
No
Housing Material
Nylon
UL 94 Flammability Rating
HB
Insulation Material
Nylon
Voltage
250VAC
Item
Watertight Pin and Sleeve Plug
Voltage Rating
250V AC
Maximum Wire Size
8 AWG
Wire Connection Type
Screw Terminals
General
Amps - Plugs and Receptacles
30
HP
7 1/2 hp
Body Material - Pin and Sleeve
Nylon
Phase - Electrical
3
Features
Watertight
Voltage - Plugs and Receptacles
250V AC
Product Description
Features a tough, nylon housing that protects against cracking, warping, corrosion, and chemical abrasion. Neoprene sealing glands provide a water-tight seal. Solid brass pins provide contact reliability and superior conductivity
Item Barcode
Pin And Sleeve Plug,Red,3
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 49YX94 | |
 | UNSPSC CODES | 39121402 | |
 | VMRS (ATA) CODES | 053-006-009 | Pin and Sleeve Plug, |
