BRYANT

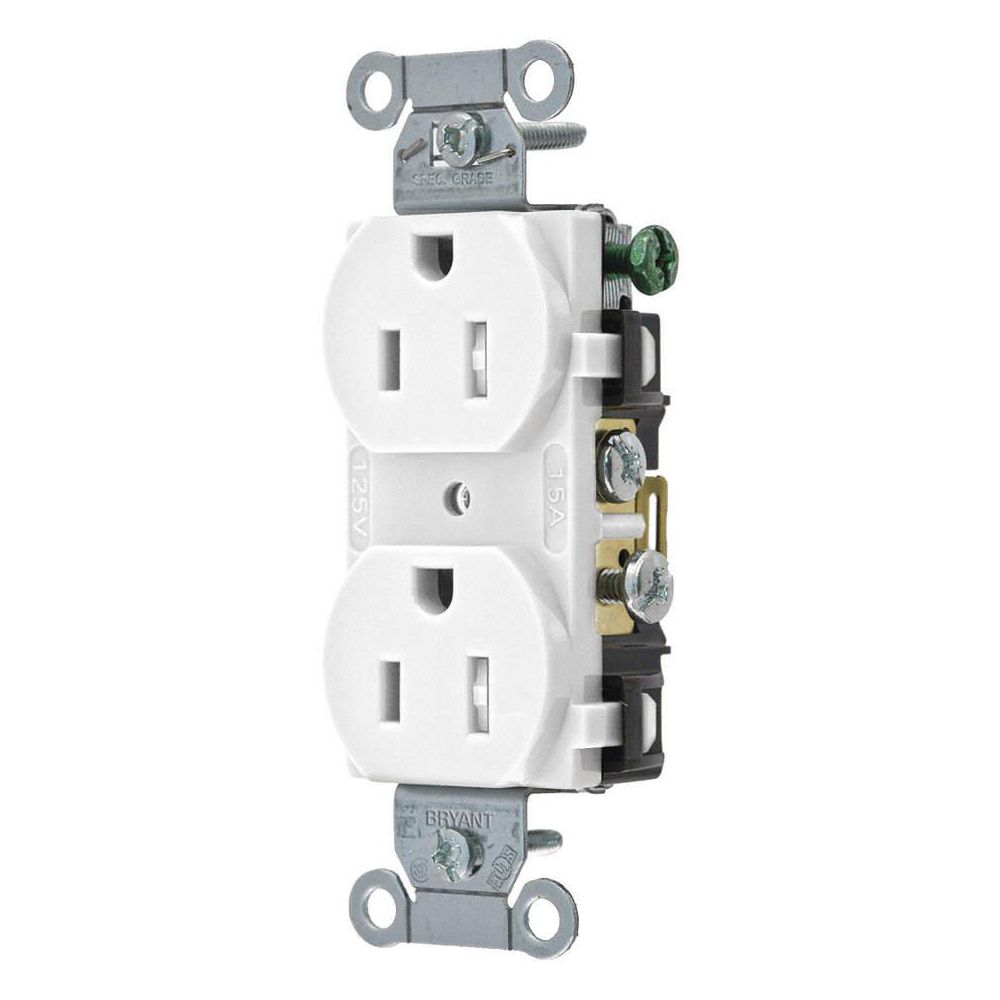

Bryant Receptacle: Duplex, 5-15R, 15 A, 125V AC, White, 2 Poles, Screw Terminals, Tamper Resistant
Hover over image to magnify
#927397-8 | Pkg Qty: 1
$6.70 pkg | $6.70 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
15 A
Number of Poles
2
Application Environment
Commercial
Number of Wires
3
Brand
BRYANT
Outlet Type
Duplex
Color Family
White
Package Quantity
1
Corrosion Resistant
No
Phase
Single
Description/Special Features
Grounding, Smooth
Power Indicator
No
Horsepower
1/2 HP
Shipping Weight
.15 lb.
Item
Receptacle
Subcategory
Duplex Receptacles
Material
Nylon
Surge Suppression
No
Mfr. Part Number
CRS15WTR
Tamper Resistant
Yes
Mounting Type
Flush
Type
Straight Blade
NEMA Configuration
5-15R
Voltage
125VAC
NEMA Receptacle Configuration
5-15R
Weather Resistant
No
Number of Gangs
1
Wiring Method
Side
General
Amps - Plugs and Receptacles
15 A
Sub-Category
Duplex Receptacles
HP
1/2 hp
Type - Plugs and Receptacles
Straight Blade
Mounting Type - Plugs and Receptacles
Flush
Voltage - Plugs and Receptacles
125V AC
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Weather Resistant - Plugs and Receptacles
No
Outlet Type - Plugs and Receptacles
Standard Duplex
Wiring Method - Plugs and Receptacles
Side
Standards
CSA Certified, NEMA WD-1 and WD-6
Product Description
Bryant® 15A Straight Blade 2-Pole, 3-Wire Receptacle Device is weather and tamper resistant. This receptacle has a smooth nylon face and is self-grounding with it's back and side wired. For commercial applications.
- 5-15R NEMA
- Standard duplex outlet type
Item Barcode
Receptacle,White,Nylon,0.5 Hp,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 49YZ22 | Receptacle, White,Nylon, |
 | UNSPSC CODES | 39121406 | |
 | VMRS (ATA) CODES | 053-006-009 | Receptacle, White,Nylon, |
