AMETEK LAMB

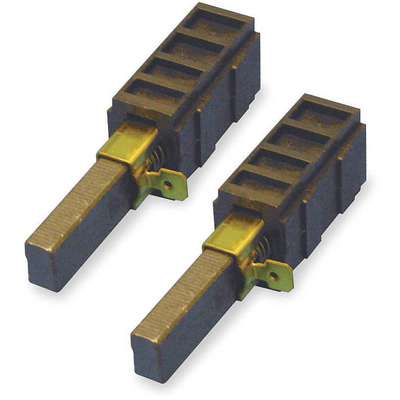

Ametek Lamb Replacement Motor Brush Set: 833415-54, 2 PK

Hover over image to magnify
Replacement Brush Mechanism,
Replacement Brush Mechanism,

#912575-7 | Pkg Qty: 2

$15.22 pkg | $7.61 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
AMETEK LAMB
Pack Quantity
2
Item
Replacement Motor Brush Set
Shipping Weight
.1 lb.
Mfr. Part Number
833415-54
Type
Standard Carbon
Number of Pieces
2
Voltage
120 VAC
General
For Use With
9231769, 9304886, 9304887, 9304888, 9304890, 9304891, 9304892, 9304893
Includes
2 Brushes, 2 Holders and 2 Springs

Product Description

Vacuum Motors

  • Enclosure: open Mounting: all-position Max. ambient: 40°C Duty: intermittent Bearings: ball, permanently lubricated Average brush life: 4.3" and 5.7" dia., 500 hr.; 7.2" dia., 700 hr.; 7.5" dia., 1000 hr.
  • Designed to move clean and dry air. Units with air-sealed bearings (see footnote 72) provide added protection against dirt and moisture. Units with plastic housings are designed for light-duty applications. Part Number: 3GXF5 is for use in high velocity/low pressure paint sprayer applications only. For use in commercial canister or utility vacuums, sprayer/foggers, material handling and transfer systems, car wash, and central vacuum systems. Replacement Brush Sets include 2 brushes, 2 holders, and 2 springs; except Part Numbers: 2UV67, 2UV76, and 2UV78 include 4 brushes, 2 holders, and 4 springs.
  • Motors are UL Recognized and CSA Certified.
  • REPLACEMENT BRUSH SETS
